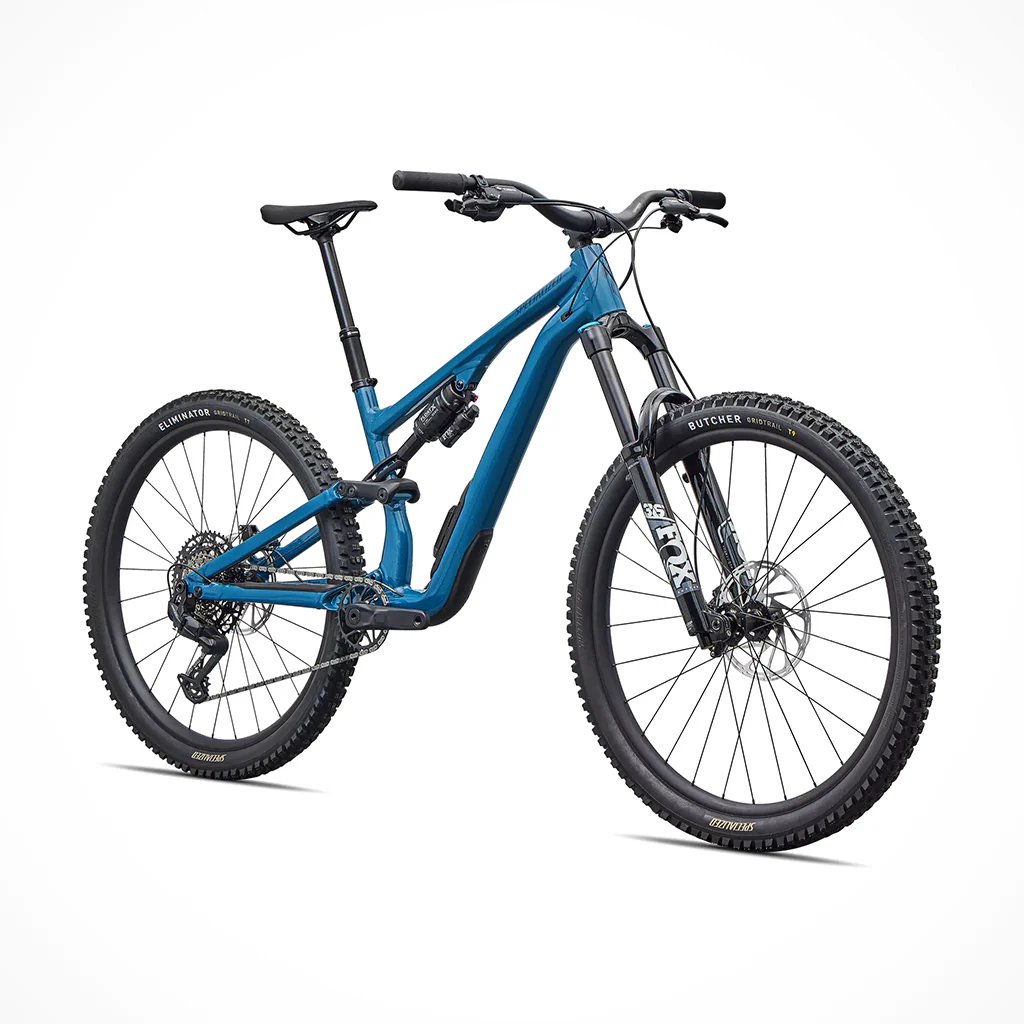

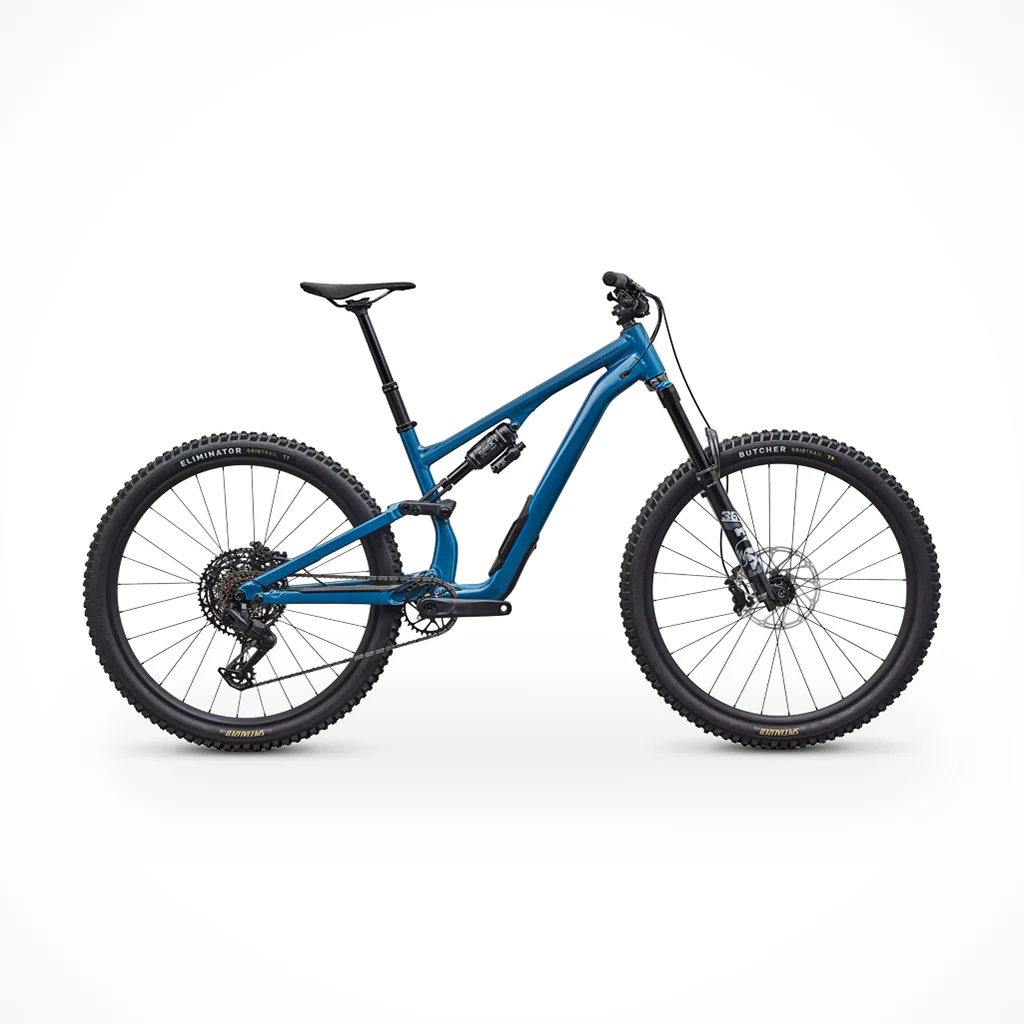

Stumpjumper 15 EVO Alloy
The Stumpjumper 15 EVO Alloy is built to crush every trail trade-off—delivering big-bike bump absorption, short-travel playfulness, and ultimate customization in one package.
At its heart is our groundbreaking GENIE Shock Technology, blending coil-like grip and traction with air-spring bottom-out control and tunable support. The result? Up to 57% better traction, 39% fewer bottom-outs, and a ride that feels like more travel than its 145 mm rear suspension suggests.
Frameset
Frame: M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder: Alloy, 38.6mm
Suspension
Rear Shock: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset S1:150mm of travel, S2-S6:160mm of travel
Brakes
Front Brake: SRAM DB8 Stealth
Rear Brake: SRAM DB8 Stealth
Drivetrain
Shift Levers: SRAM EAGLE 70
Rear Derailleur: SRAM Eagle 70 T-Type
Cassette: SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chain: SRAM 70 Transmission Chain
Crankset: SRAM Eagle 70, 55mm chainline, 32T
Bottom Bracket: SRAM DUB Threaded Wide
Wheels & Tires
Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Hub: Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Spokes: DT Swiss Elemental
Front Tire:Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Inner Tubes: Standard, Presta Valve
Cockpit
Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Grips: Specialized Trail Grips
Saddle: Bridge Comp, Hollow Cr-mo rails S1-S2: 155mm, S3-S6:143mm
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 190mm
Accessories
SWAT: Internal SWAT Downtube Storage
Product Details
Product ID: 221474
Weight
Weight: 16.55 kg (36 lb, 7.8 oz)
Weight Size: S4
Original: $3,999.99
-65%$3,999.99
$1,400.00
Description
The Stumpjumper 15 EVO Alloy is built to crush every trail trade-off—delivering big-bike bump absorption, short-travel playfulness, and ultimate customization in one package.
At its heart is our groundbreaking GENIE Shock Technology, blending coil-like grip and traction with air-spring bottom-out control and tunable support. The result? Up to 57% better traction, 39% fewer bottom-outs, and a ride that feels like more travel than its 145 mm rear suspension suggests.
Frameset
Frame: M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder: Alloy, 38.6mm
Suspension
Rear Shock: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Fork: FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset S1:150mm of travel, S2-S6:160mm of travel
Brakes
Front Brake: SRAM DB8 Stealth
Rear Brake: SRAM DB8 Stealth
Drivetrain
Shift Levers: SRAM EAGLE 70
Rear Derailleur: SRAM Eagle 70 T-Type
Cassette: SRAM 1270 Transmission Cassette, 12 Spd,10-52t
Chain: SRAM 70 Transmission Chain
Crankset: SRAM Eagle 70, 55mm chainline, 32T
Bottom Bracket: SRAM DUB Threaded Wide
Wheels & Tires
Rims: Specialized, hookless alloy, 30mm inner width, tubeless ready
Front Hub: Specialized alloy front hub disc, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub: Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HD Steel Fhb
Spokes: DT Swiss Elemental
Front Tire:Butcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Inner Tubes: Standard, Presta Valve
Cockpit
Stem: Alloy Trail Stem, 35mm bar bore
Handlebars: Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
Grips: Specialized Trail Grips
Saddle: Bridge Comp, Hollow Cr-mo rails S1-S2: 155mm, S3-S6:143mm
SeatPost: X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 190mm
Accessories
SWAT: Internal SWAT Downtube Storage
Product Details
Product ID: 221474
Weight
Weight: 16.55 kg (36 lb, 7.8 oz)
Weight Size: S4
